Why Dirty Filters Cause Frozen Evaporator Coils — And How It Impacts Your System

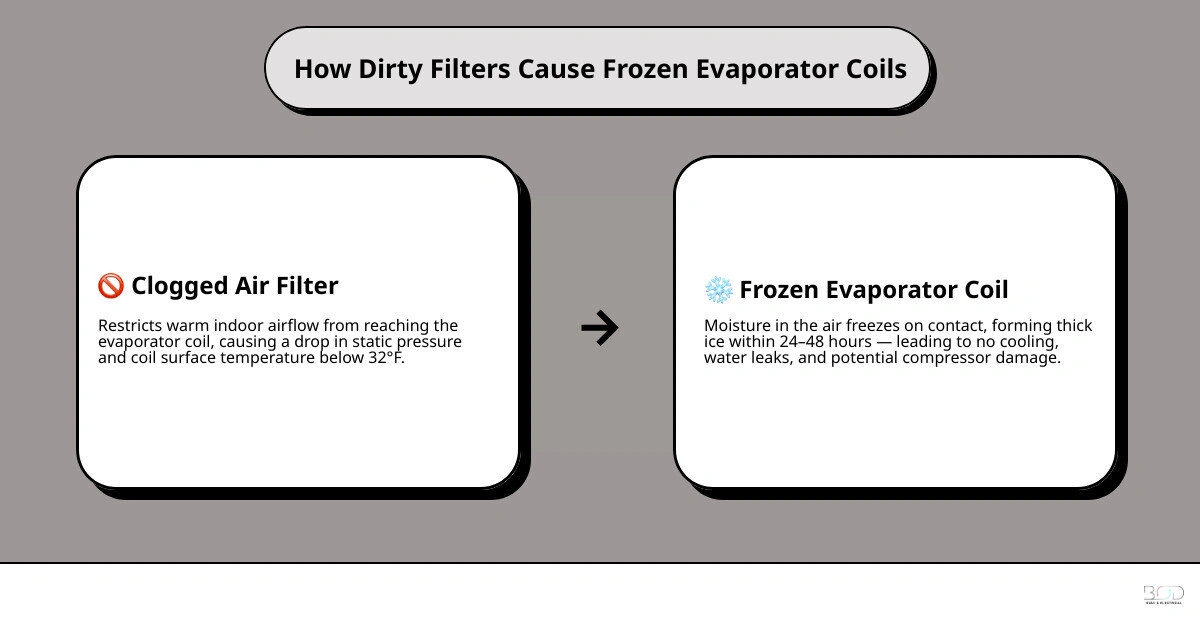

How dirty filters cause frozen evaporator coils is one of the most common — and most preventable — AC problems homeowners face every summer. Here is the short answer:

1. A clogged filter blocks warm indoor air from reaching the evaporator coil.

2. Without that warm airflow, the coil surface temperature drops below 32°F.

3. Moisture in the air freezes on contact with the coil.

4. Ice builds up fast — sometimes within 24 to 48 hours of continuous operation.

5. The result: no cooling, water leaks, and potential compressor damage from simple filter replacement neglect.

It sounds unlikely that something as simple as a dusty filter could lock your entire AC system in a block of ice — but it happens all the time. HVAC technicians see it every summer: a homeowner calls because their house won't cool down, and when the air handler is opened, the evaporator coil is completely encrusted in thick white frost. Nine times out of ten, the culprit is a filter that hasn't been changed in months.

The good news is that once you understand exactly what is happening inside your system, preventing it is straightforward.

The Science: How Dirty Filters Cause Frozen Evaporator Coils

To understand why a simple sheet of dusty fiberglass or pleated paper can turn your indoor air handler into a mini glacier, it helps to understand how your air conditioner actually works.

Many people believe air conditioners "create cold air." In reality, AC units remove heat and humidity from the air inside your home. Liquid refrigerant enters the indoor evaporator coil at temperatures as cold as 10°F to 20°F. As your system's blower fan pulls warm room air across the coil fins, heat from that air is absorbed by the cold refrigerant. Under normal operating conditions, this continuous heat transfer warms the surface of the coil up to about 40°F to 45°F — well above the freezing mark.

When a filter becomes clogged with dust, dander, and household debris, a massive static pressure drop occurs across your HVAC system. The blower motor struggles to pull air through the clogged filter medium, severely choking system airflow. Without a steady stream of warm return air passing over the heat exchanger, there is no heat for the refrigerant to absorb.

Because the liquid refrigerant inside continues to enter at freezing temperatures without receiving indoor heat, the surface temperature of the evaporator coil drops rapidly below 32°F. Clean airflow is the only thing keeping your cooling system from freezing solid.

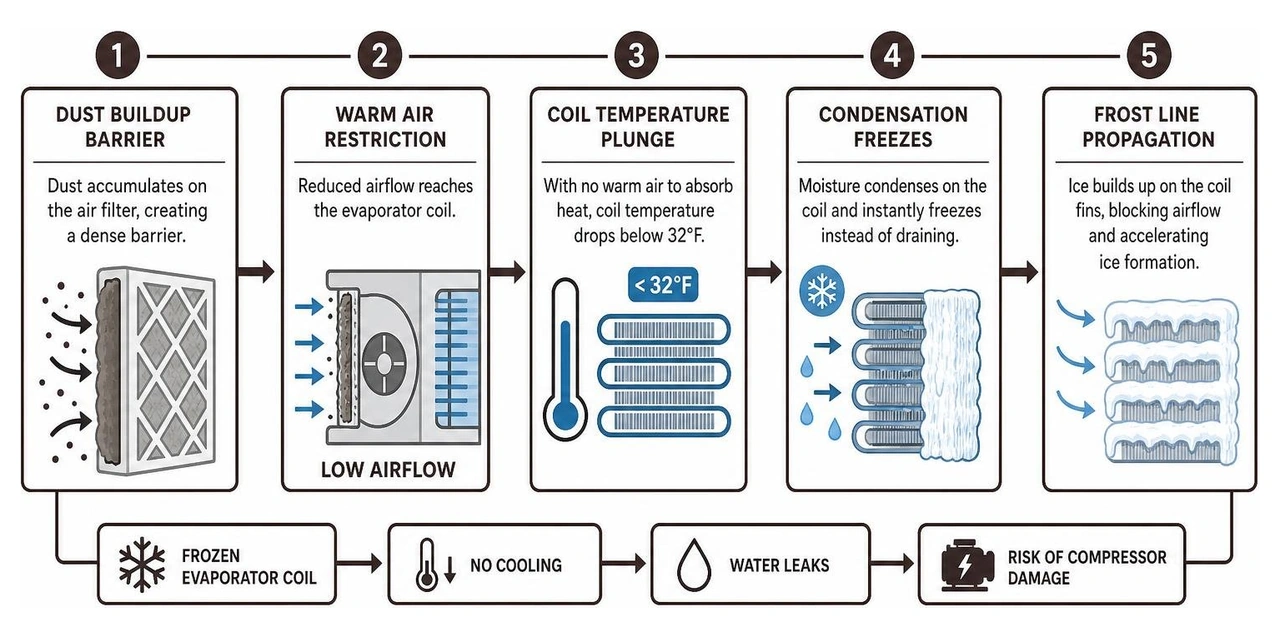

The Step-by-Step Physics: How Dirty Filters Cause Frozen Evaporator Coils

The process from a neglected filter to a frozen block of ice follows a predictable physics chain reaction:

1. Dust Buildup Barrier: Over weeks of continuous cooling during warm weather, airborne particles coat the surface of your air filter, creating a tight physical barrier.

2. Warm Air Restriction: The volume of warm indoor air entering the air handler drops below the required cubic feet per minute (CFM) needed for heat exchange.

3. Coil Temperature Plunge: Deprived of heat, the aluminum fins and copper tubing of the evaporator coil quickly fall below 32°F.

4. Condensation Freezes: Your air conditioner naturally pulls humidity out of the air. This moisture condenses on the coil surface, but instead of dripping into the condensate drain pan, it instantly freezes into ice.

5. Frost Line Propagation: As frost forms on the coil fins, it further reduces the tiny air gaps between the fins.

6. Compounding Ice Loop: A self-reinforcing freeze loop takes over. Less airflow creates more ice, and more ice blocks even more airflow. Within a day or two, the entire coil becomes a solid block of ice.

Environmental Factors: How Dirty Filters Cause Frozen Evaporator Coils Quickly

While a normal household air filter might last up to 90 days during mild seasons, environmental factors inside and outside your home can drastically shorten this timeline:

• High Humidity Levels: When humidity spikes during Pacific Northwest summers, your AC unit must condense larger volumes of water vapor from indoor air. Higher moisture levels accelerate ice formation once coil temperatures drop below freezing.

• Pet Dander and Fur: Houses with dogs or cats collect shed fur and airborne pet dander continuously. Dander acts like glue on air filters, locking in dust particles and clogging fine filter pores in half the normal time.

• Seasonal Pollen Spikes: During high pollen seasons in spring and summer across the Portland metro area, return vents pull in concentrated airborne plant allergens that coat filter fibers rapidly.

Under heavy pollen, pet, and humidity conditions, a clean air filter can transform into a severely clogged barrier in just 30 days. If left unchecked during continuous summer cooling, a clogged filter can trigger coil freezing within 24 to 48 hours.

Warning Signs and Differentiating Coil Freezing from Normal Moisture

How can you tell if your evaporator coil is freezing before your house becomes an oven? Catching the early warning signs can mean the difference between a simple filter change and a costly emergency callout.

Common warning signs of a freezing evaporator coil include:

• Weak Airflow from Vents: You feel only a faint breeze coming from supply registers throughout your home.

• Warm or Lukewarm Air: The air blowing out of your vents feels humid or ambient rather than crisp and cold.

• Continuous System Running: The air conditioner runs constantly without reaching the target temperature set on your thermostat.

• Water Pooling Near the Air Handler: As small amounts of ice melt during natural system off-cycles, water overflows the condensate drain pan and puddles on the floor around your furnace or indoor unit.

• Hissing or Bubbling Noises: Restricted airflow and erratic refrigerant expansion inside iced tubing can create unusual whistling, hissing, or bubbling sounds inside ductwork.

• Frost on Refrigerant Piping: Visible white frost or ice appears on the uninsulated brass fittings or copper suction line located at your outdoor condenser unit.

It is critical to distinguish between normal condensation produced during cooling and abnormal coil icing:

• Physical Appearance — Normal Evaporator Coil Moisture: Light dew or clear water droplets glistening on aluminum fins — Abnormal Frozen Evaporator Coil: Thick white frost, sheet ice, or solid ice blocks encasing fins

• Coil Temperature — Normal Evaporator Coil Moisture: Standard operating range: 40°F to 45°F — Abnormal Frozen Evaporator Coil: Drops below 32°F freezing threshold

• Airflow Output — Normal Evaporator Coil Moisture: Strong, steady, cool airflow from room vents — Abnormal Frozen Evaporator Coil: Very weak, warm, or non-existent airflow

• Drainage System — Normal Evaporator Coil Moisture: Steady dripping into condensate pan and clear outdoor drain line — Abnormal Frozen Evaporator Coil: Water overflowing drain pan onto floor or ceiling below

• System Cooling Effect — Normal Evaporator Coil Moisture: Drops home indoor temperature efficiently — Abnormal Frozen Evaporator Coil: Home temperature rises despite AC running non-stop

How to Safely Thaw a Frozen Evaporator Coil and Prevent System Damage

If you discover ice on your evaporator coil or notice frost building up on copper refrigerant lines, you must take immediate action to protect your home from water damage and shield your compressor from severe mechanical failure.

Here is the step-by-step procedure to thaw your coil safely:

Step 1: Immediately Turn Off the Cooling System

Go directly to your thermostat and switch the system mode from "Cool" to "OFF." Never leave the cooling system running when ice is present. Continuing to operate the unit in cooling mode forces liquid refrigerant back toward the compressor, which can cause irreparable mechanical destruction.

Step 2: Switch the Thermostat Fan Setting to "ON"

Change the fan setting on your thermostat from "Auto" to "ON." This keeps the indoor blower fan running continuously while the cooling cycle is shut down. The fan will blow warm, room-temperature indoor air directly across the frozen coil fins, dramatically accelerating the thawing process without using electrical heating elements.

Step 3: Monitor the Condensate Drain Pan and Protect Your Home

A frozen evaporator coil holds a significant amount of trapped water. As the ice melts, water will flow rapidly into the condensate drain pan.

• Ensure your drain line is clear and flowing freely outside.

• Place protective towels, buckets, or plastic sheeting around the indoor air handler or furnace cabinet to catch potential overflows.

• Check the drain pan periodically to ensure water isn't backing up into your home's structure.

Step 4: Remove and Replace the Dirty Air Filter

While the system thaws, locate your air filter cabinet. Remove the clogged, gray, or dusty filter and dispose of it immediately. Replace it with a fresh, properly sized air filter.

Step 5: Allow Sufficient Time for Complete Thawing

A standard layer of ice typically takes 1 to 3 hours to thaw completely with the fan running on "ON." However, if your unit is encased in a solid block of ice, full defrosting can take up to 24 hours.

Critical Safety Warning: Never use sharp tools such as screwdrivers, knives, ice picks, or hair dryers to chip or melt ice off delicate aluminum coil fins. Evaporator fins and copper lines are extremely delicate; puncturing a line will release refrigerant, creating an expensive repair and environmental hazard.

Ensuring that all ice has melted before restarting system cooling is the essential first step in effective troubleshooting.

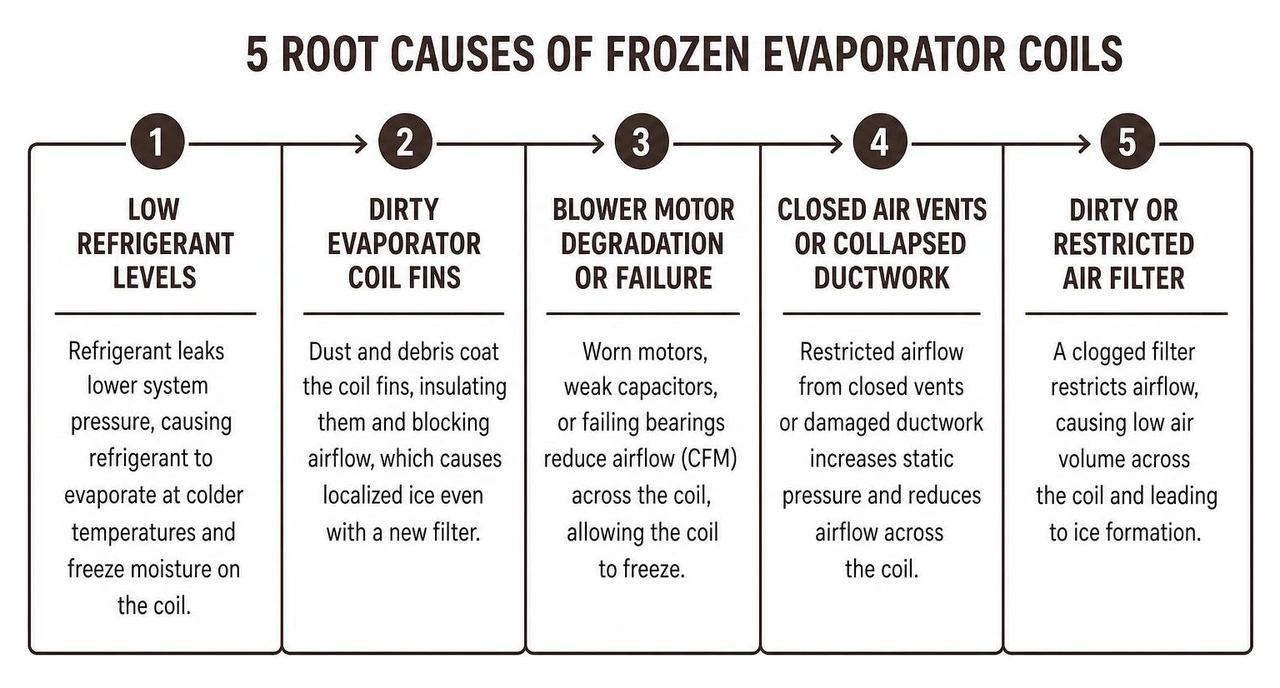

Alternative Causes to Rule Out and Filter Maintenance Guidelines

While dirty air filters represent the overwhelming majority of frozen coil incidents, changing the filter and thawing the unit might not completely resolve the problem if secondary HVAC issues exist. If your system freezes up again shortly after installing a fresh filter, you must rule out these alternative causes:

1. Low Refrigerant Levels: Refrigerant leaks lower internal operating pressure. When pressure drops below design specs, refrigerant evaporates at much colder temperatures, causing moisture to freeze even with moderate airflow.

2. Dirty Evaporator Coil Fins: Over time, fine dust that bypasses inexpensive or ill-fitting filters coats the coil fins directly. This dirt layer insulates the aluminum fins and physically blocks airflow, creating localized ice spots even with a brand-new filter installed.

3. Blower Motor Degradation or Failure: Blower motors have a typical operational lifespan of 10 to 12 years. As capacitors weaken or bearings wear out, the fan slows down, reducing CFM airflow across the heat exchanger. Listen for low rattling or hums from the air handler cabinet.

4. Closed Air Vents or Collapsed Ductwork: Closing too many supply registers or having crushed or disconnected ductwork in attics or crawlspaces restricts system airflow just like a dirty filter, increasing static backpressure.

To prevent frozen coils caused by airflow restrictions, follow these recommended air filter replacement guidelines based on home environment:

• Standard Homes (No Pets, Mild Allergies): Replace standard 1-inch pleated filters every 60 to 90 days.

• Homes with 1 Pet or Light Allergies: Replace filters every 30 to 60 days.

• Homes with Multiple Pets, High Pollen, or High Humidity: Inspect filters every 30 days and replace every 30 to 45 days during peak summer operation.

Selecting the Right Filter MERV Rating

When choosing replacement filters, paying attention to the MERV (Minimum Efficiency Reporting Value) rating is essential:

• MERV 1 to 4: Standard fiberglass filters. They offer minimal resistance to airflow but capture almost no microscopic dust, allowing debris to coat your coil fins directly.

• MERV 8 to 11 (Recommended): The ideal sweet spot for residential HVAC systems. These filters trap pet dander, dust mites, and pollen effectively while maintaining optimal static pressure and healthy airflow.

• MERV 13+: High-efficiency filters designed for superior indoor air quality. However, in standard residential HVAC blowers, ultra-dense MERV 13+ filters can restrict airflow almost as severely as a dirty filter, triggering the exact coil freezing issues you are trying to avoid.

Frequently Asked Questions About Frozen Evaporator Coils

Can running an AC with a frozen coil cause permanent damage?

Yes. Operating an air conditioner with a frozen evaporator coil risks severe, irreversible damage to your system's compressor — a critical component in your HVAC unit.

Because the frozen evaporator coil cannot absorb heat, the refrigerant inside fails to evaporate into a warm gas and remains in a cold liquid state. This unevaporated liquid refrigerant flows back down the suction line into the outdoor compressor.

Compressors are engineered exclusively to compress gas, not liquid. When liquid refrigerant enters the compressor cylinder — a dangerous phenomenon known as liquid slugging — it can blow out internal valves, shatter pistons, dilute compressor lubricant, and destroy the motor. Replacing a damaged compressor or installing a whole new cooling system becomes necessary, making a simple filter change a critical preventive measure.

How long does it take for a frozen evaporator coil to fully thaw?

Under standard conditions — with the thermostat set to "OFF" and the indoor fan switched to "ON" — a standard layer of ice on an evaporator coil usually thaws completely in 1 to 3 hours.

However, if the system was left running while frozen for several days, creating a solid block of ice encased around the entire air handler housing, complete defrosting can take 12 to 24 hours. Never attempt to restart cooling mode until you are 100% sure that all ice inside the cabinet and on outdoor line sets has completely melted into liquid water and drained away.

What should I do immediately if I discover ice on my indoor AC unit?

If you spot frost or ice on your indoor air handler or outdoor copper lines, take these four immediate steps:

1. Switch Thermostat Cooling OFF: Stop the cooling cycle immediately to halt liquid refrigerant flow and protect the compressor.

2. Turn Fan Setting to ON: Run the indoor fan continuously to circulate warm household air over the ice blocks.

3. Inspect and Replace the Air Filter: Check your filter cabinet. If the filter is gray, bowed, or dirty, replace it immediately with a fresh MERV 8 to 11 filter.

4. Inspect the Condensate Line: Check your outdoor condensate drain pipe to confirm water is flowing out freely. Clear any algae or dust blockages in the drain trap so melting water doesn't flood your home.

If the unit freezes up again after replacing the filter and allowing a full thaw, contact a licensed professional immediately to check for refrigerant leaks, dirty coil fins, or blower motor failures.

Conclusion

Understanding how dirty filters cause frozen evaporator coils highlights how critical routine maintenance is to keeping your home comfortable during hot Oregon summers. What starts as a simple layer of household dust on a return air filter can quickly trigger static pressure drops, thermal exchange interruptions, solid ice buildup, and devastating compressor failure.

By checking your air filter every 30 days, choosing the right MERV 8 to MERV 11 filter rating, and acting immediately at the first sign of weak airflow or localized frost, you protect your system's operational health and prevent unexpected cooling breakdowns.
